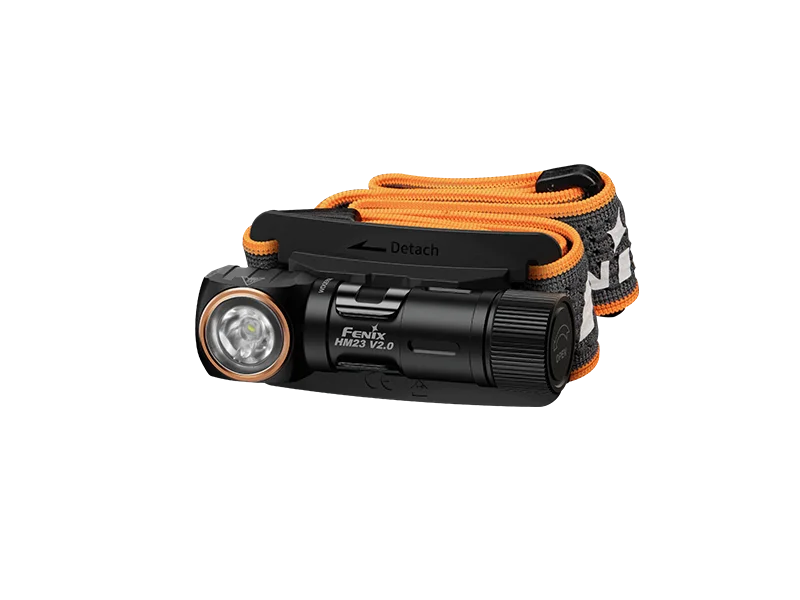

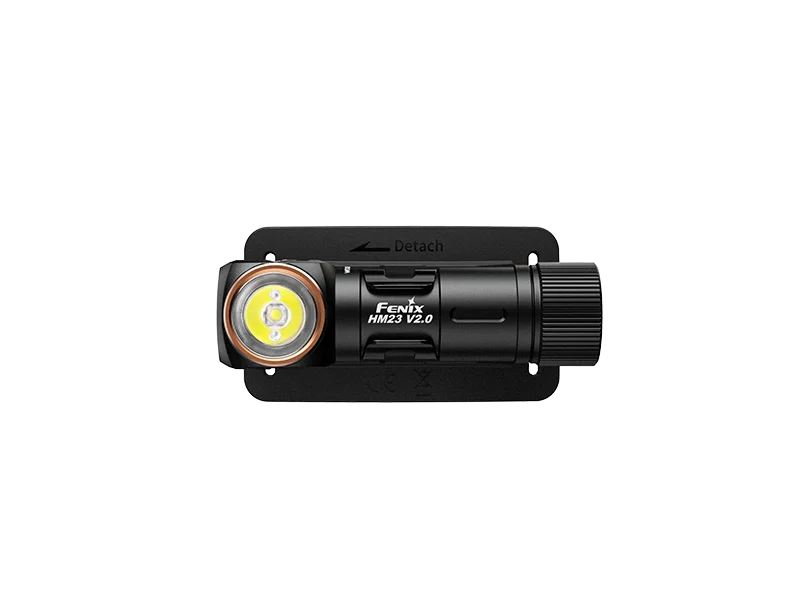

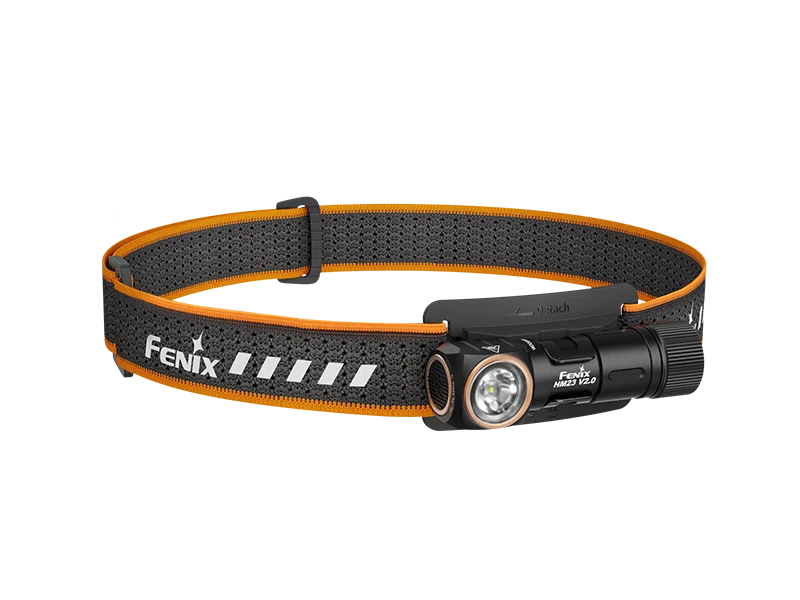

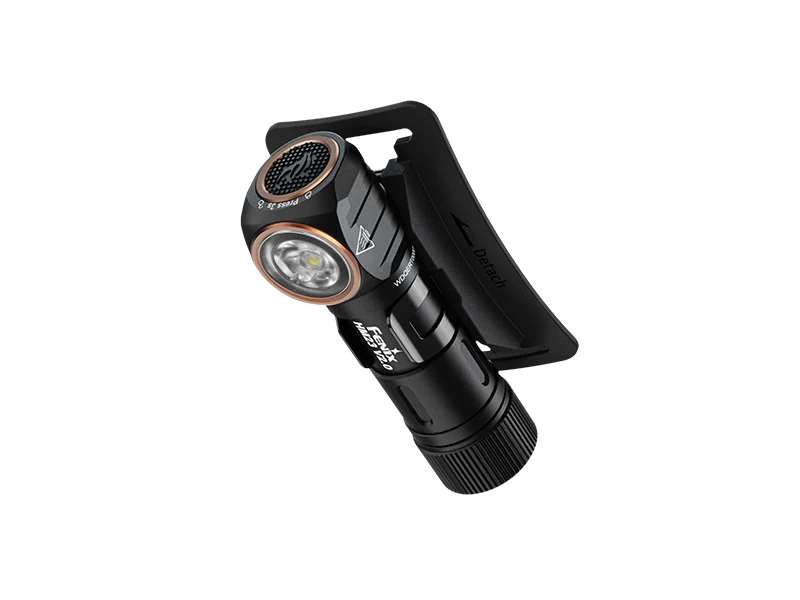

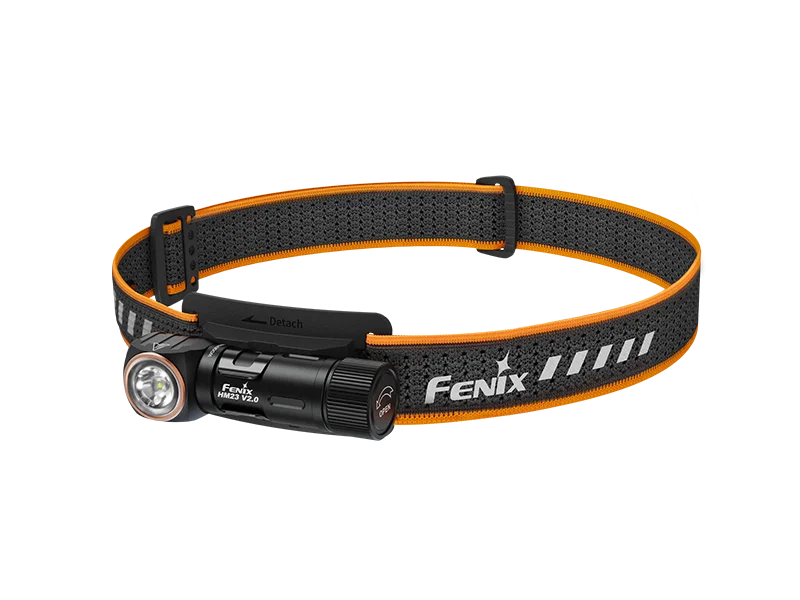

Fenix HM23 V2.0 AA-Powered Multipurpose Ultralight Headlamp
AA-Powered Multipurpose Ultralight Headlamp
The Fenix HM23 V2.0 is engineered for versatility and reliability in demanding outdoor conditions. Weighing just 86.3 grams with battery, this ultralight headlamp offers a maximum output of 300 lumens, projecting light up to 88 meters. It features dual LED technology, delivering both white and red light options. The headlamp runs on standard AA batteries, with an option for enhanced performance using 14500 rechargeable lithium batteries. Designed for durability, it boasts an IP68 waterproof rating and withstands drops from 2 meters. With a detachable design, magnetic tail cap, and integrated body clip, the HM23 V2.0 ensures optimal functionality as both a headlamp and handheld flashlight.
Key Features
- 300 lumens maximum output, 80 meters maximum beam distance.
- Utilizes one Luminus SST20 white LED and two 2835 red LEDs; with a life span of 50,000 hours each.

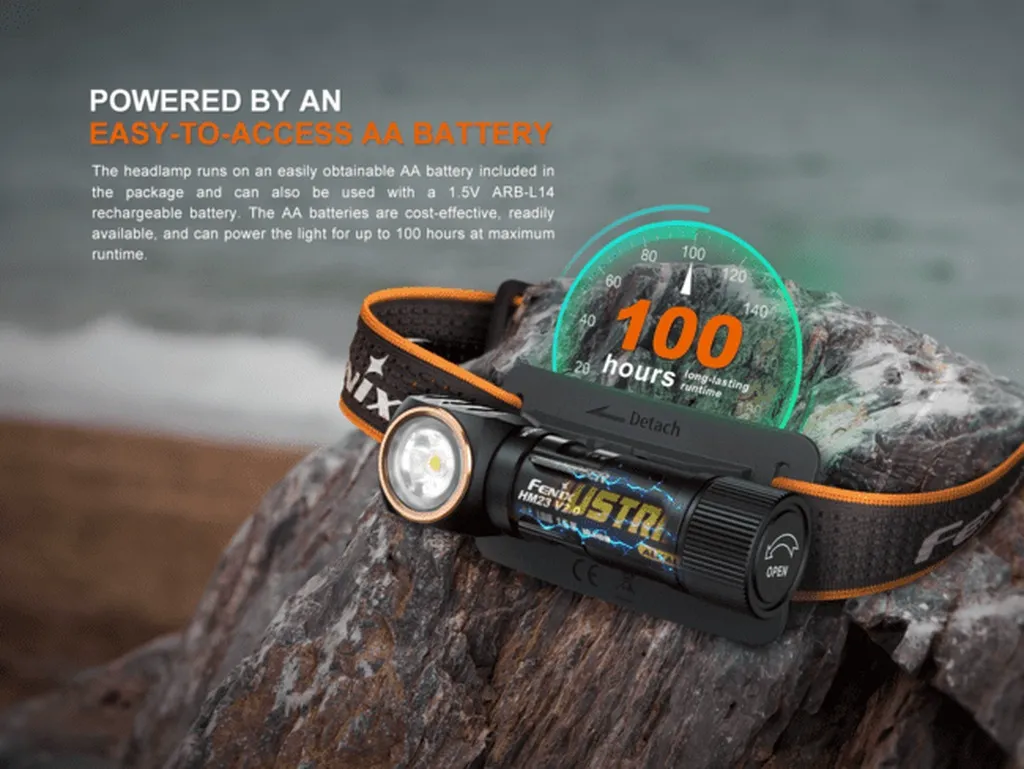

- Powered by one AA battery and compatible with one 1.5V 14500 rechargeable battery.
- White and red light sources assist various lighting needs in different outdoor scenarios.
- Electronic lockout avoids accidental activation.

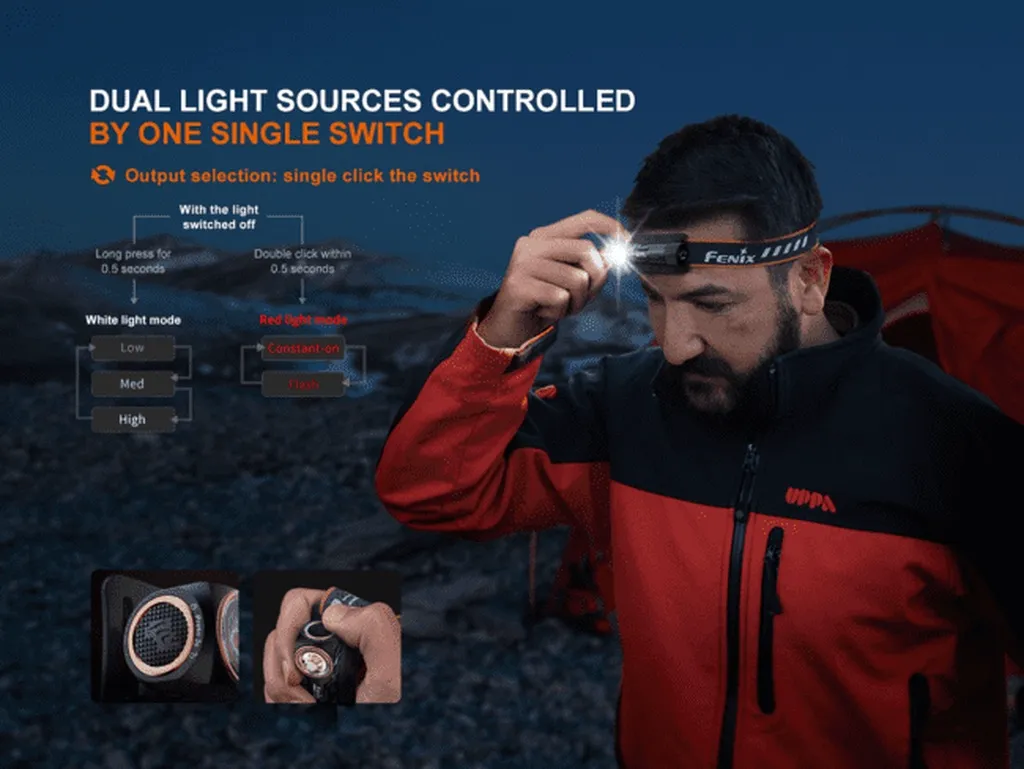

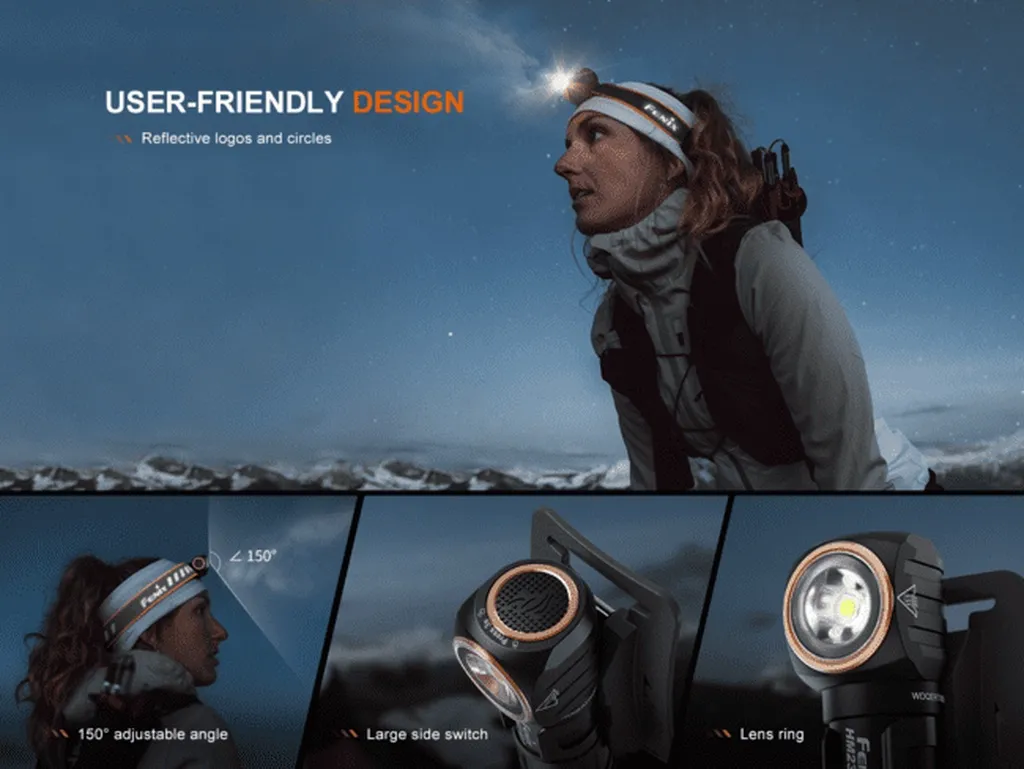

- Large side switch for fast and simple operation.
- Can be used as a headlamp and flashlight.
- Magnetic tail for hands-free use.
- Reverse polarity protection to protect from improper battery insertion.
- Lamp body is made of aluminum alloy material, lightweight and durable.
- IP68-rated protection and 2 meters impact resistance.
Specifications
| Waterproof Rating | IP68 |
| Impact Resistance | 2m |
| Size — Length | Length: 73.6 mm |
| Size — Width | Width: 36 mm |
| Size — Height | Height: 30 mm |
| Weight — Including battery | 86.3 gm, including battery |
| Battery | One AA Battery (Included) |
| Output Modes | 5 |

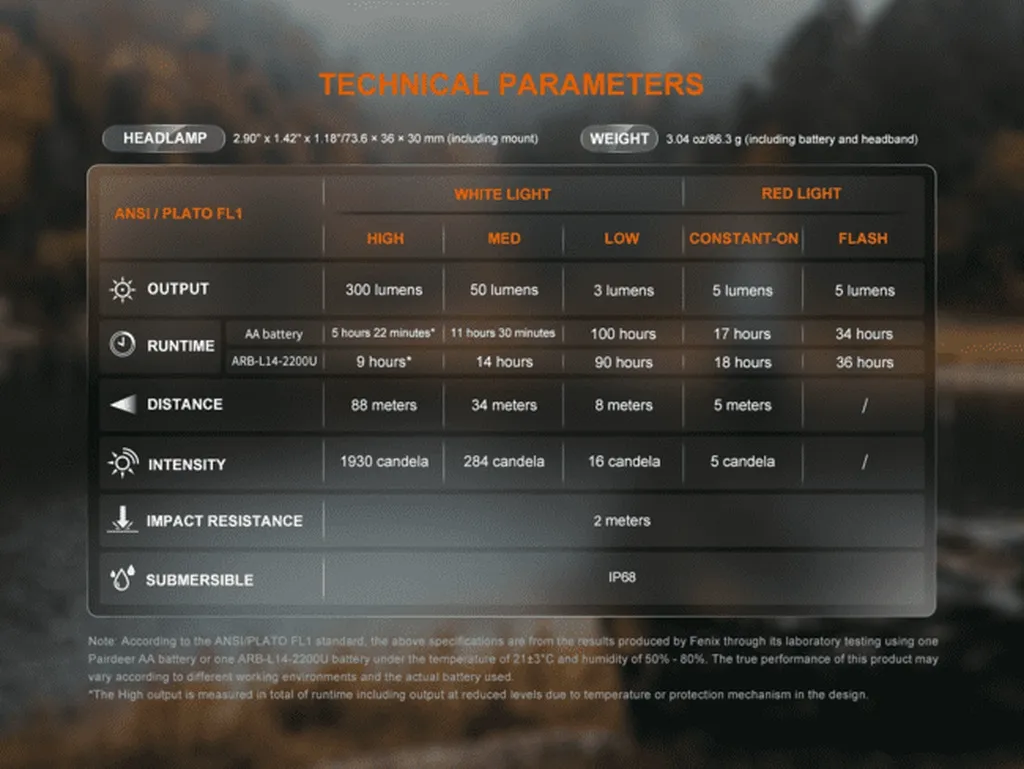

Performance Data
| Mode | Output (lumens) | Runtime | Distance | Intensity |
|---|---|---|---|---|
| HIGH | 300 | 5h 22min | 88m | 1930 cd |
| MED | 50 | 11h 30min | 34m | 284 cd |
| LOW | 3 | 100h | 8m | 16 cd |
| RED | 5 | 17h | 5m | 5 cd |
| RED FLASH | 5 | 34h |

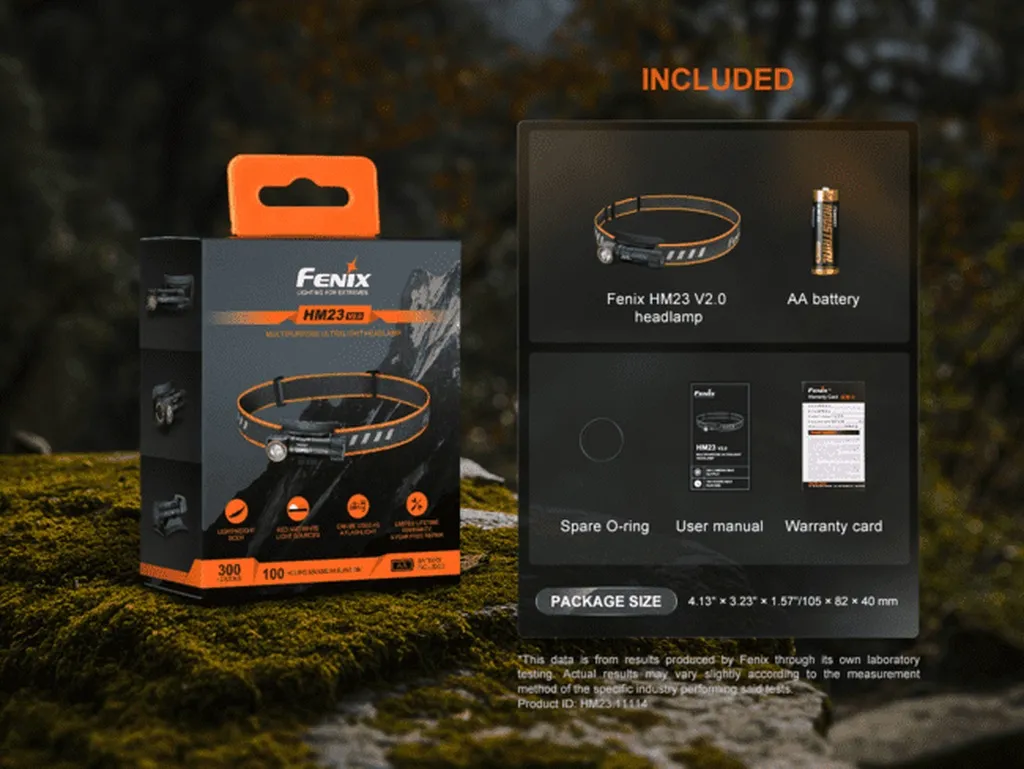

What's in the Box
- AA battery
- spare O-ring
User Manual
Fenix HM23 V2.0 User Manual (PDF)Accessories for Fenix HM23 V2.0
