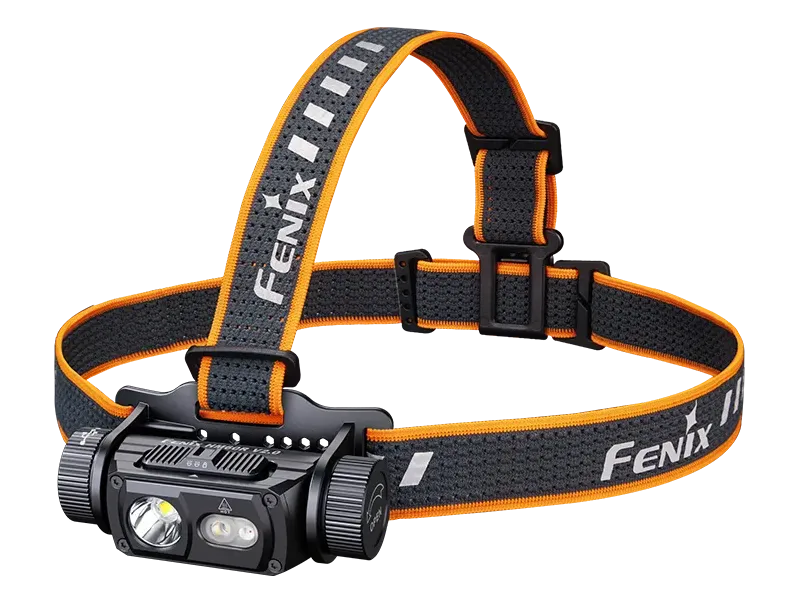

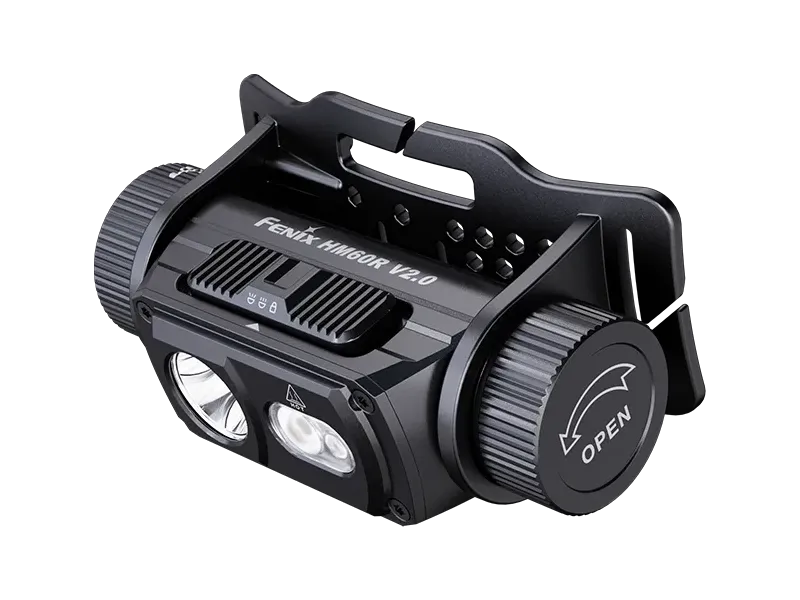

Fenix HM60R V2.0 Outdoor High-Performance Metal Headlamp
Outdoor High-Performance Metal Headlamp
1,600 lumens
170m beam
IP68
2m impact
RED light
SKU: FENHM60RV20
· EAN: 6942870312934
In stock
Ships from Ontario
CAD Pricing
Lifetime Warranty
Authorized Dealer
The Fenix HM60R V2.0 is a 1,600-lumen rechargeable headlamp with a 170-meter beam and three light modes — spotlight for distance, floodlight for close work, and red to preserve night vision. The 4000mAh 18650 cell charges via a hidden USB-C port, with CR123A backup compatibility. Aluminum body, IP68 sealed.
Key Features
- Uses one Luminus SST40-GEN2 white LED, one Luminus SST20-GEN2 high-CRI neutral white LED, and one OSRAM 2835 red LED; with a lifespan of 50,000 hours each.
- Spotlight, floodlight and red light sources assist various lighting needs in various complex outdoor scenarios.

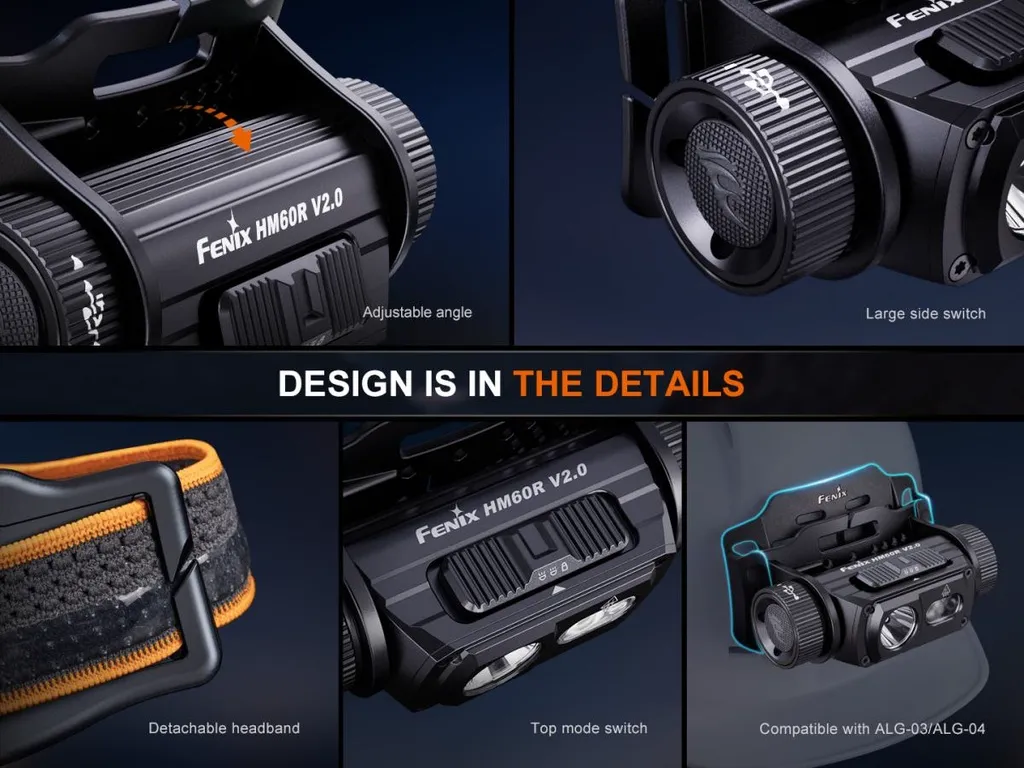

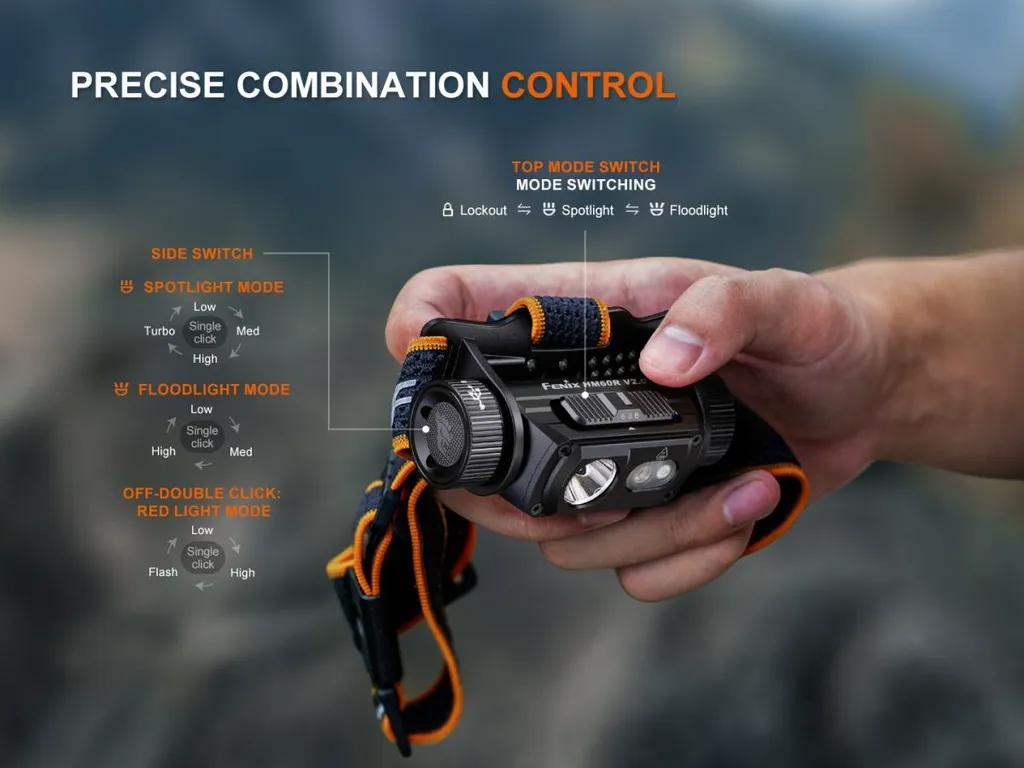

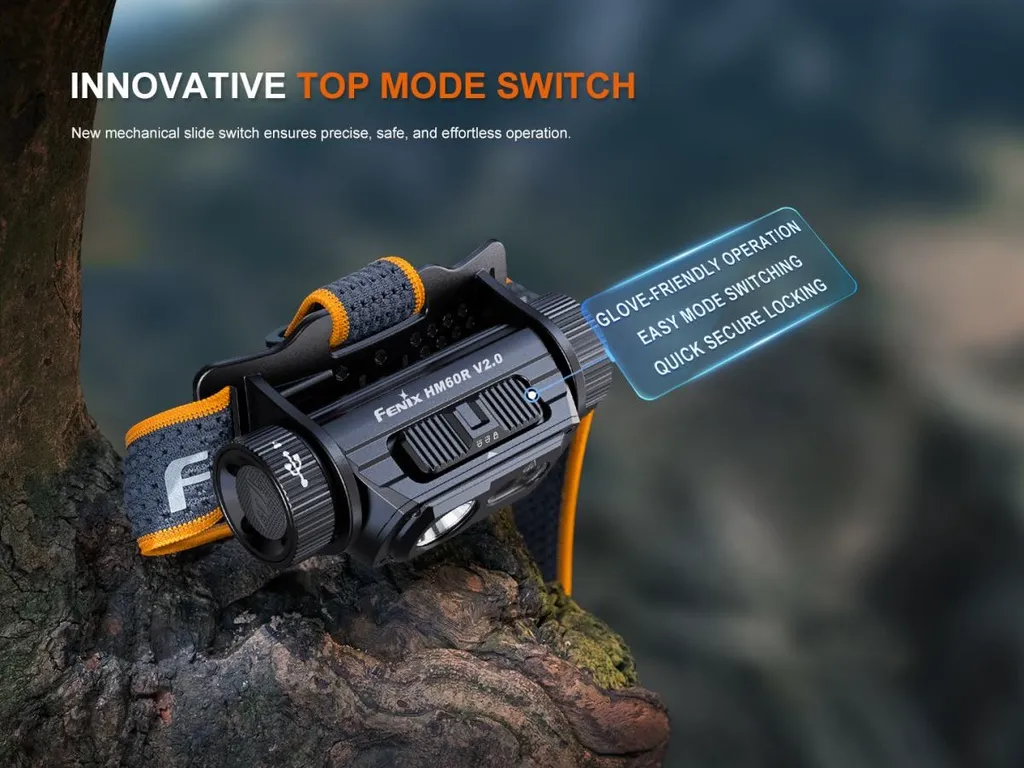

- Top mode switch enables quick mode switching and lock out function.
- Large side switch for easy selection of brightness levels.

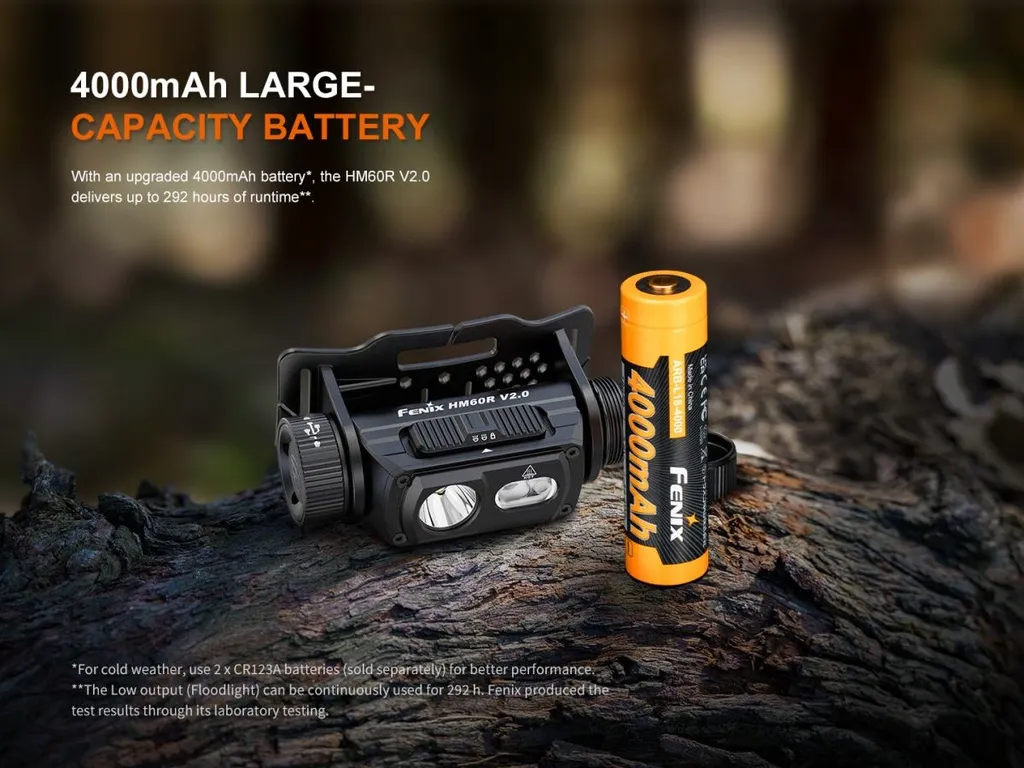

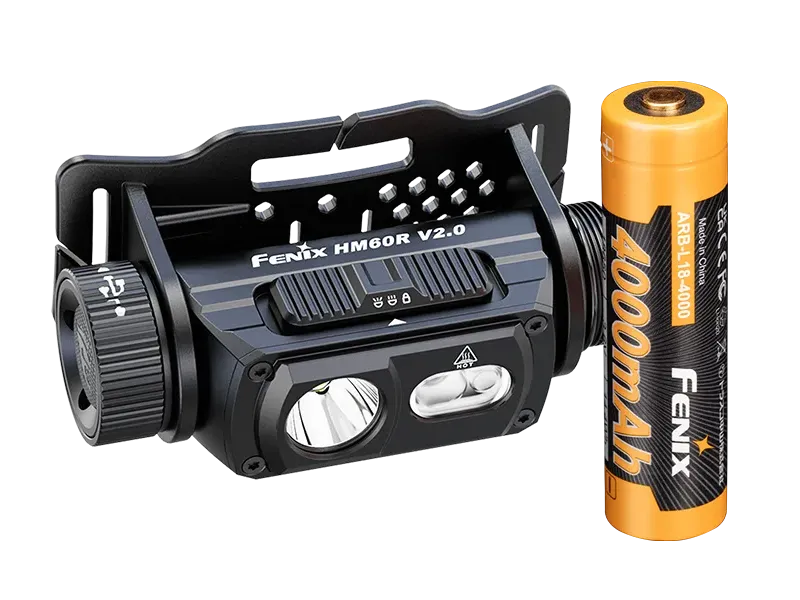

- Powered by a rechargeable ARB-L18-4000 battery and compatible with two CR123A batteries.

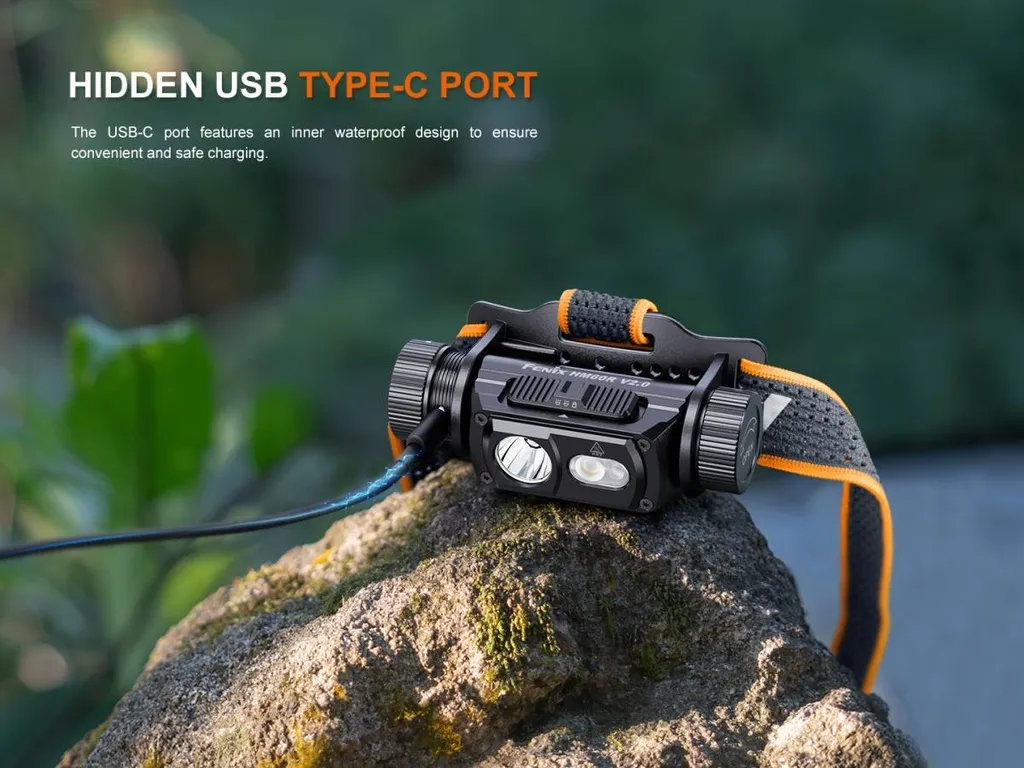

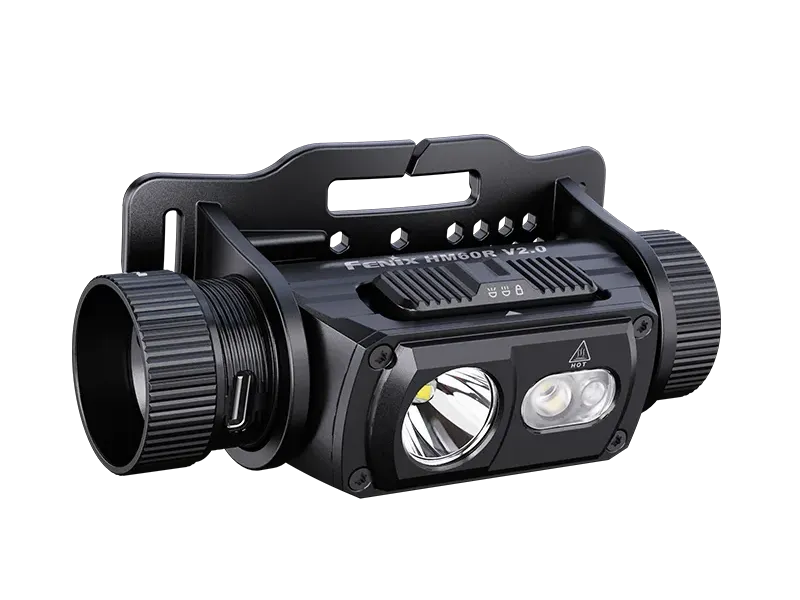

- Hidden USB Type-C charging port with inner waterproof treatment.
- Premium type HAIII hard-anodized anti-abrasive finish.
- Made of durable A6061-T6 aluminum alloy material.

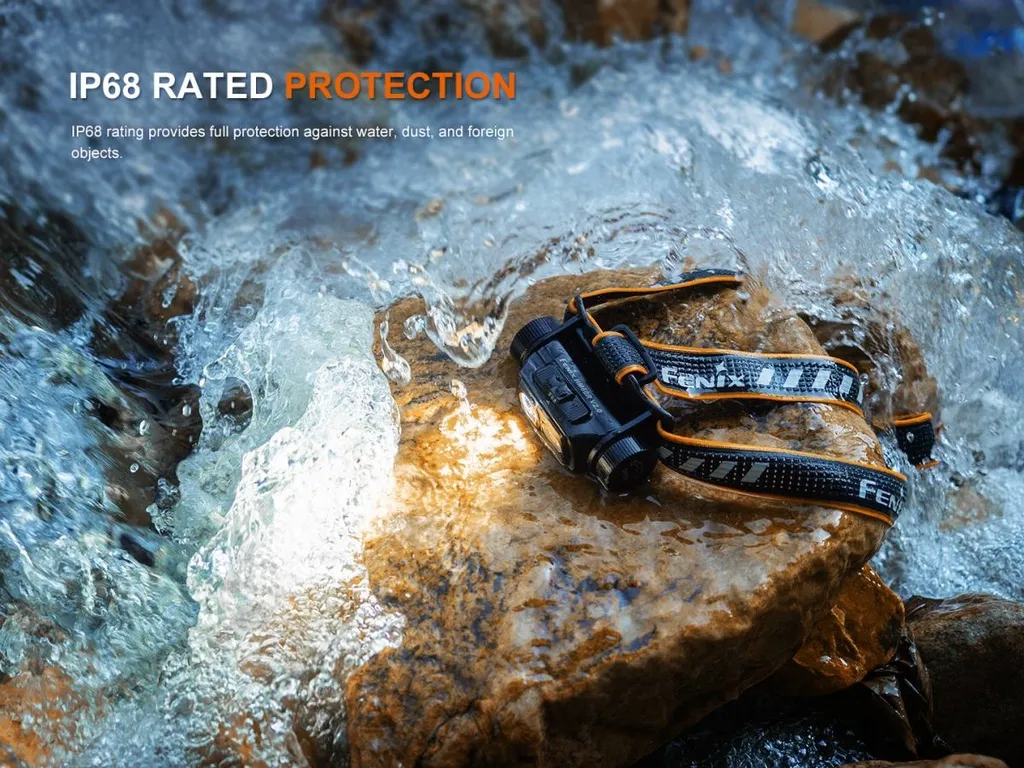

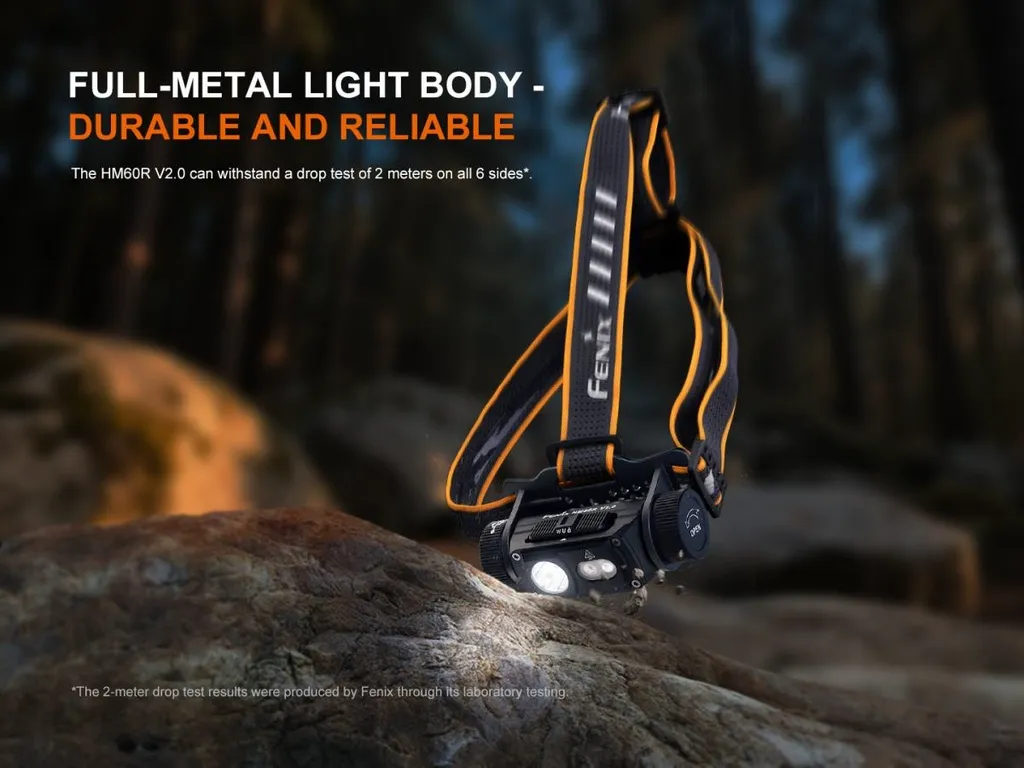

- IP68-rated protection and 2 meters impact resistance.
Specifications
| Waterproof Rating | IP68 |
| Impact Resistance | 2m |
| Size — Length | Length: 88 mm |
| Size — Width | Width: 45.7 mm |
| Size — Height | Height: 45 mm |
| Weight — Including battery | 173 gm, including battery |
| Battery | One Fenix ARB-L18-4000 Li-ion Rechargeable Battery (Included) |
| Output Modes | 10 |

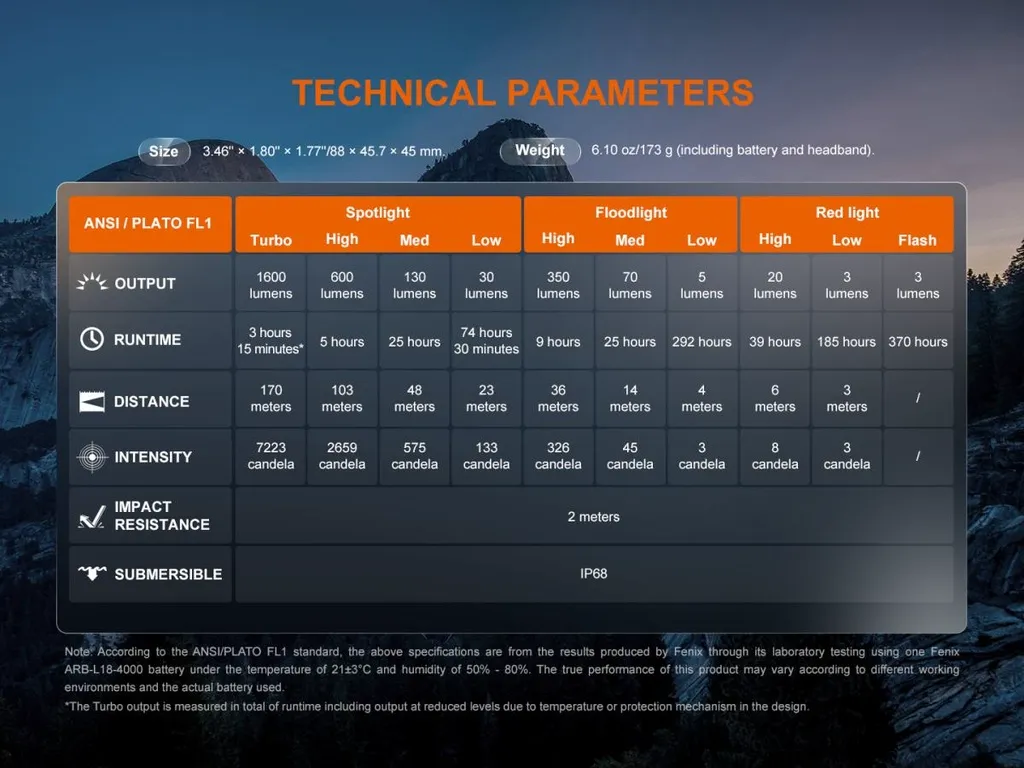

Performance Data
| Mode | Output (lumens) | Runtime | Distance | Intensity |
|---|---|---|---|---|
| SPOT TURBO | 1,600 | 3h 15min | 170m | 7223 cd |
| SPOT HIGH | 600 | 5h | 103m | 2659 cd |
| SPOT MED | 130 | 25h | 48m | 575 cd |
| SPOT LOW | 30 | 74h 30min | 23m | 133 cd |
| FLOOD HIGH | 350 | 9h | 36m | 326 cd |
| FLOOD MED | 70 | 25h | 14m | 45 cd |
| FLOOD LOW | 5 | 292 | 4m | 3 cd |
| RED HIGH | 20 | 39h | 6m | 8 cd |
| RED LOW | 3 | 185h | 3m | 3 cd |
| RED FLASH | 3 | 370h |

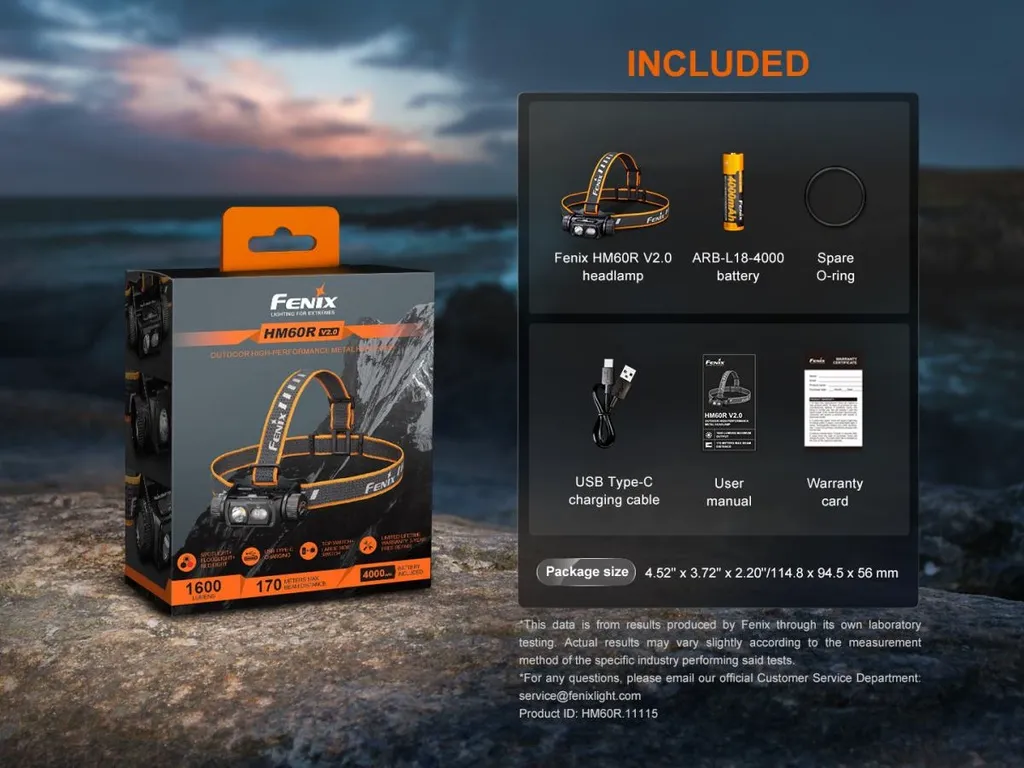

What's in the Box
- ARB-L18-4000 battery
- Spare O-ring
- USB Type-C charging cable
User Manual
Fenix HM60R V2.0 User Manual (PDF)Accessories for Fenix HM60R V2.0
Fenix APB-30
$19.95 CAD
Fenix ALD-02
$14.95 CAD
Fenix ARB-L18-4000
$35.95 CAD
Fenix ARE-D1
$21.95 CAD
Fenix ARE-D2
$39.95 CAD
Fenix ARE-A2
$38.95 CAD
Related Products
Frequently Asked Questions
The HM60R V2.0 produces 1,600 lumens on Spot Turbo with a 170-meter beam distance and a peak luminous intensity of 7,223 candela. The beam is tuned for hands-free throw on trails, work tasks, and search situations where you need to see further than a standard headlamp reaches.
Yes. The headlamp has three independent lighting channels — spot (long throw), flood (wide near-field), and red (night vision preservation). A dual-switch layout lets you change between beam types and brightness levels quickly, even with gloves on.
Spot Turbo (1,600 lumens) runs 3 hours 15 minutes, High (600) runs 5 hours, Med (130) runs 25 hours, Low (30) runs 74 hours 30 minutes. Flood tops at 9 hours on High (350 lumens). Red Low runs 185 hours and Red High 39 hours — useful range for multi-day trips.
The primary power source is the included ARB-L18-4000 18650 rechargeable cell, charged through a hidden USB-C port on the headlamp. In an emergency or on long expeditions away from power, it also accepts two CR123A primary cells as a drop-in backup.
The body is IP68 sealed against dust and water immersion and carries a 2-meter impact rating. The shell is HAIII-anodized A6061-T6 aluminum — built to take hits, wet weather, and rough handling without compromising the light engine.
Red preserves night-adapted vision for map reading, astronomy, hunting setup, and moving around a tent or campsite without waking others. Three red modes are available (high, low, and a low-drain flash beacon) with runtimes measured in days rather than hours.
